Product Description
6 Cavity Mold TL356-124-TC WITH Mold Handles AND Sizing and Lube Kit
356 Diameter, 124 Grain, Tumble Lube, Truncated Cone
90402+90005+90046+90177
NEW!
For: 9mm Luger, 38 Super, 380 ACP
Designed for volume production, the Lee 6-Cavity Bullet Mold blocks are machined from commercial quality aluminum and feature steel bushing and alignment pins.
Lee mold blocks are machined from aluminum blocks making them rust resistant.
Aluminum molds heat up and cool down faster than iron or steel molds so good bullets can usually be produced after only a few casts.
In addition, they are one-third the weight of iron or steel mold blocks for less fatigue during extended casting sessions.
To ensure the best possible bullets, mold block halves are CNC machined for unmatched roundness and size control.
Lee 6-Cavity molds come with a cam operated, hard-anodized sprue plate which is held tightly with tempered spring washers at each end.
Weights given are Lee's weights with suggested alloy; actual weight may vary due to alloy mixture used.
Handles ARE included.
Uses .356 Sizing and Lube Kit (Included).
Features:
- Rust resistant aluminum blocks
- Lathe bored blocks with steel bushings and alignment pins
A note from Lee Precision on their bullet molds:
Lee Precision does not recommend the use of any spray type mold release products in their bullet molds.
The use of such products may result in a build-up of the release product in the bullet mold cavity, reducing the diameter of the bullets cast from the treated mold.
Instead, Lee Precision recommends smoking the mold with a wooden match, beeswax candle or a butane lighter as described in their provided bullet mold instructions.
Material: Aluminum
+

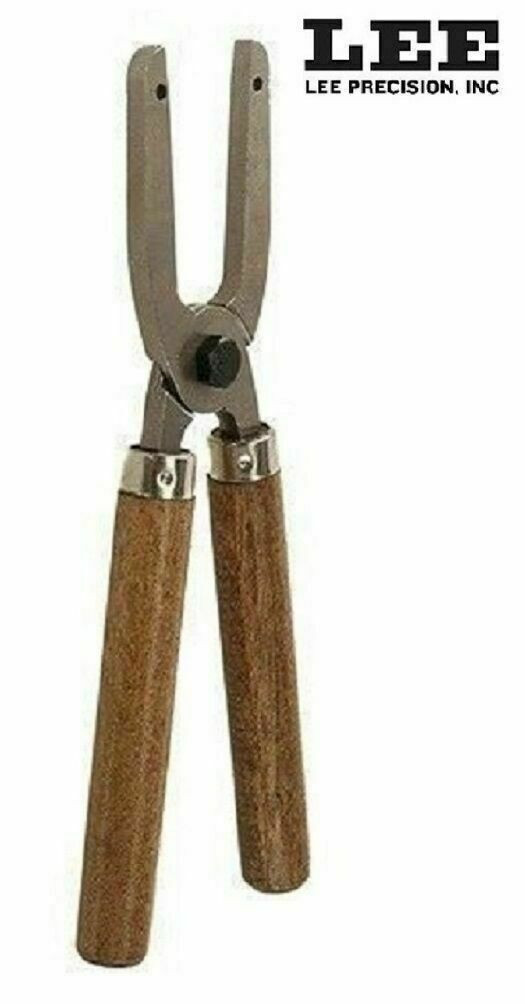

Commercial Bullet Mold Handles for 6-Cavity Lee Bullet Molds
90005
Lee Commercial Bullet Mold Handles for 6-Cavity Bullet Molds are necessary for using Lee 6-Cavity molds which do not ship with handles.
These handles also fit the Lee 18 Cavity Buckshot molds.
This handle has a steel frame and hardwood grips which are designed to last a lifetime.
Fits: Lee 6-Cavity and 12-Cavity Bullet Molds
Notes: Lee states that these handles will fit some one and two cavity molds from other manufacturer, but there are no specific manufacturers or mold blocks mentioned.
+
Bullet Sizing Die Kit WITH LUBE
90046+90177
For: .356 Diameter
The Lee Lube and Size Kit is one of the fastest and easiest ways to lubricate and size cast bullets.
The sizing die that comes with the kit fits in any press that accepts standard 7/8"-14 threaded dies.
Bullets are pushed through the sizing die nose first, so no special top punches are needed.
Gas checks are automatically seated and crimped in place.
Sized bullets are captured in the special container which is included and doubles as a storage case for the die.
Notes:
- Comes in red plastic case
- Lee recommends bullets be relubed after sizing to be sure the sized portion is coated.
- All lead bullets must be lubricated, but it is not absolutely necessary to size all cast bullets. Bullets must be sized if they are so large that they expand the case too much to freely enter the gun's chamber. Sizing sometimes helps accuracy by making the bullet uniform in diameter. Sizing helps ensure uniform start pressure and better accuracy. Gas checks can be installed with this tool. Simply place the gas check on the base of the bullet before sizing.
- Lee recommends the use of Alox bullet lube, included.
Directions for Use:
Lubricating Bullets:
1. Place bullets in provided red plastic container and drop Lee Liquid Alox onto the bullets.
2. Gently shake the bullets in an orbital motion to coat the bullets. If they do not coat completely, add a little more lube.
3. Spread the bullets onto waxed paper and let dry overnight.
4. Load at least one bullet into a case and check to be sure it easily chambers in the gun. If it fits tightly, you must resize the bullet before loading.
Sizing Bullets:
1. Screw the sizing die into any standard reloading press. Exact depth is not important.
2. Install the bullet punch into the ram. This fits all rams that use standard shellholders.
3. Place the red plastic container with the lubed bullets inside on top of the sizing die.
4. Place bullet on the punch and push the bullet through the die.
5. When 3/4 of the bullets have been loaded, lift the red plastic container off the die. Invert the holder before opening.
6. For rifle and hot pistol loads, it is best to relube the bullets to ensure the sized portion is recoated.
Sizing Bullets:
1. Screw the sizing die into any standard reloading press. Exact depth is not important.
2. Install the bullet punch into the ram. This fits all rams that use standard shellholders.
3. Place the red plastic container with the lubed bullets inside on top of the sizing die.
4. Place bullet on the punch and push the bullet through the die.
5. When 3/4 of the bullets have been loaded, lift the red plastic container off the die. Invert the holder before opening.
6. For rifle and hot pistol loads, it is best to relube the bullets to ensure the sized portion is recoated.
+
Alox Bullet Lube Liquid, 4 OZ
90177
Lee Liquid Alox Bullet Lube coats the entire bullet in a very thin film of lubricant.
This thin film dries to a soft, varnish-like finish that really adheres to the bullet.
Additionally, the dried coating will not affect powder.
Easy to apply and eliminates the need for sizing of most cast bullets.
While it works well with all cast bullets, it works best with the micro band bullets, which are designed for tumble lubing.
Notes:
Alox works best when it is heated before applying.
Heat a coffee cup of water in the microwave for 2 minutes, then drop the bottle of liquid alox in the mug for 5 minutes.
The Alox may be thinned with mineral spirits.
Maximum of 1 part mineral spirits to 10 parts Alox.
~~~~~~~~~~~~~~~~~~~~~
