Product Description
NO BOX OR INSTUCTIONS INCLUDED

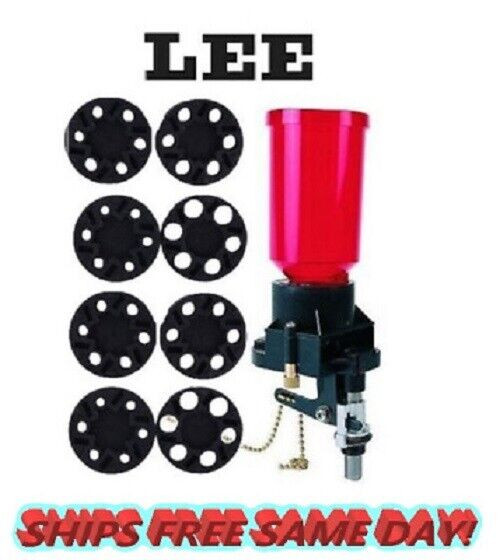

Pro Auto-Disk Powder Measure +
another Auto Double Disk Kit
New
another Auto Double Disk Kit
New
8 Disks total included
90429
The Lee Pro Auto-Disk powder measure is perfect
for the high volume reloader utilizing a progressive
reloading press.
The innovative design will not cut powder and almost
totally eliminates leakage, the large hopper with shut-
off valve is attached with brass thumb nuts for the
ultimate in disk changing convenience.
The positive pull-back lever increases safety.
Comes with four disks, swivel adapter and spring
return lever with spring.
Designed to be mounted on the Lee Pro-1000 and
Loadmaster presses with Lee powder-through
expander dies.
Material: Plastic and Hardened Metal
Metering Chamber:
24 Cavities measuring different volumes of powder
Features:
Elastomer Wiper and Teflon Coated metal casing
Attachment:
Lee powder-through expanding dies or Rifle powder
charging die (Sold separately)
Includes:
Four disks with 6 cavities per disk to measure powder.
Change to throw powder charge.
Powder Charge Thrown:
90429
The Lee Pro Auto-Disk powder measure is perfect
for the high volume reloader utilizing a progressive
reloading press.
The innovative design will not cut powder and almost
totally eliminates leakage, the large hopper with shut-
off valve is attached with brass thumb nuts for the
ultimate in disk changing convenience.
The positive pull-back lever increases safety.
Comes with four disks, swivel adapter and spring
return lever with spring.
Designed to be mounted on the Lee Pro-1000 and
Loadmaster presses with Lee powder-through
expander dies.
Material: Plastic and Hardened Metal
Metering Chamber:
24 Cavities measuring different volumes of powder
Features:
Elastomer Wiper and Teflon Coated metal casing
Attachment:
Lee powder-through expanding dies or Rifle powder
charging die (Sold separately)
Includes:
Four disks with 6 cavities per disk to measure powder.
Change to throw powder charge.
Powder Charge Thrown:
Between 2.7-14.4 Grains of Unique and 4.0-21.1 grains
of IMR 4064 (Double Disk kit (sold separately) will
effectively double the charges able to be thrown.
Will work with all types of smokeless powder.
Notes:
The Lee Pro Auto-Disk Powder Measure will work with
turret presses when setup properly although it was not
designed for this application.
+
90195
The Lee Auto-Disk Powder Measure Double Disk Kit raises
the hopper of the Lee Pro Auto-Disk Powder Measure so
reloaders can stack two disks.
This not only doubles the capacity of the disks, but it makes
very fine adjustments possible.
Most powders can be adjusted +/-.1 grain with different
combinations of disks.
Complete listing of combinations, 4 extra disks, screws
and risers are included.
Fits: Lee Auto-Disk Powder Measure
Function:
Increases the capacity of powder charges thrown for the Lee
Auto-Disk Powder Measure
Material: Hardened Plastic
Notes:
With the addition of this kit the Lee Auto-Disk Powder Measure
can drop up to 28.8 grains of unique and 42.2 grains of IMR
4064 (this kit will work with all brands of smokeless powder).
Kit raises powder hopper permitting two disks to be stacked in powder measure.
Allows the user to double the capacity and make very fine adjustments.
longer screws for the powder measure and riser.
Most powders can be adjusted up or down in 1/10th grain
increments using different combinations of disks.
Includes list of different combinations, four extra disks
(which are the same as those included with the powder measure),
longer screws for the powder measure, and riser.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
We are a Factory Direct Dealer of Lee® Precision, Inc.
ALL MANUFACTURERS WARRANTIES WILL APPLY !
All of our products are BRAND NEW in the box; and contain all of the parts,
materials and documentation.
You can expect and will receive prompt delivery of your item.
We will ship your order within ONE DAY!
Product Videos
Custom Field
Country/Region of Manufacture United States
Brand Lee Precision
Type Powder Measure
