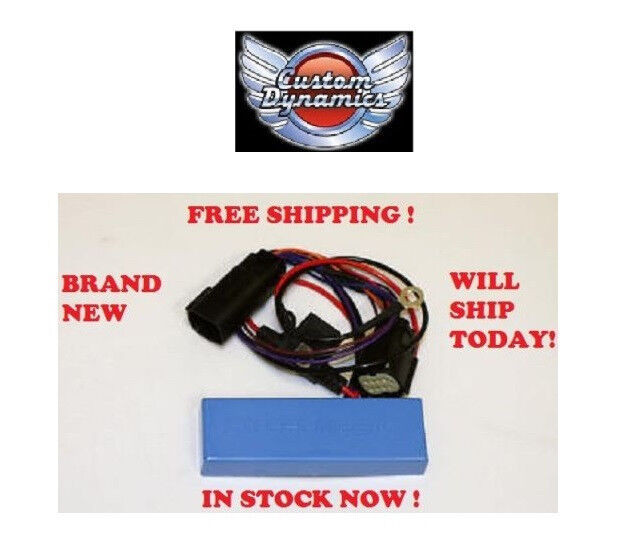

Street Magic 8 PIN SlimLine Signal Stabilizer with Radio Frequency Shielding
For: Harley Davidson
NEW!
GEN-HD-SS8
Plug and Play on the following Harley Davidson:
2010-2012 Street Glide CVO
2009 Road Glide CVO
2009 Road Glide CVO
2012-2013 Road Glide Custom CVO
2013 Road King CVO
2011 Touring Road Glide Ultra CVO
2013 Touring Road Glide Custom CVO Anniversary
(2014 HD DO NOT Require a Load Equalizer)
2013 Road King CVO
2011 Touring Road Glide Ultra CVO
2013 Touring Road Glide Custom CVO Anniversary
(2014 HD DO NOT Require a Load Equalizer)
- Fixes rapid blinking of turn signals when using aftermarket LED lights
- Compatible with alarms
- Does not put a significant load on system; produces no heat
- Waterproof slimline design measures 2.4 in. L x 1.4 in. W x .5 in. D
- Alarm Compatible,
- No Heat
- No Load
- 100% Waterproof
- 5 Year Manufacturer Warranty
- Dimensions: 4.2" x 0.6" x 1.4"
SS8 Signal Stabilizers Installation Instructions:
1. Locate connector block for taillight/turn signals located under seat or left side panel on some models. Unplug
main harness connector from fender harness connector.
2. Plug Signal Stabilizer§ in between these two connectors. Mount Signal Stabilizer in secure location.
3. Connect Red wire from Signal Stabilizer to Positive of Battery through 3 amp Fuse.
4. Attach Black wire with terminal ring from Signal Stabilizer§ to NEGATIVE of battery.
5. Perform a turn signal synchronization.
main harness connector from fender harness connector.
2. Plug Signal Stabilizer§ in between these two connectors. Mount Signal Stabilizer in secure location.
3. Connect Red wire from Signal Stabilizer to Positive of Battery through 3 amp Fuse.
4. Attach Black wire with terminal ring from Signal Stabilizer§ to NEGATIVE of battery.
5. Perform a turn signal synchronization.
With the key in the run position and the bike off, press the right turn signal button and allow the turn signal to flash 2 times, after the second flash press the left turn signal
button and allow the turn signal to flash 2 times, after the second flash press the right turn signal and allow it to flash at east 10 times.
button and allow the turn signal to flash 2 times, after the second flash press the right turn signal and allow it to flash at east 10 times.
Turn key off.
6. Test signals for proper operation. Test Alarm for proper operation, if equipped.
7. If there is interference on CB or FM stations on touring bikes, move the black wire from the negative of
the battery to the right side grounding stud on the bike's frame directly in front of the battery box.
6. Test signals for proper operation. Test Alarm for proper operation, if equipped.
7. If there is interference on CB or FM stations on touring bikes, move the black wire from the negative of
the battery to the right side grounding stud on the bike's frame directly in front of the battery box.
~~~~~~~~~~~~~~~~~~~~~~~~~
