Product Description
Stainless Case Trimmer with Micrometer Adjustment AND Hard Anodized Case Holder Clamp
CTSS-MIC+CTP-ACLMP
NEW!

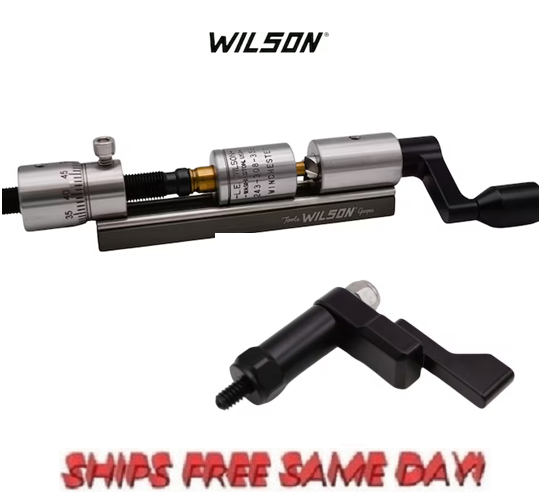

Stainless Case Trimmer with Micrometer Adjustment
The Stainless Case Trimmer with Micrometer Adjustment delivers precise, repeatable case trimming with fine .001 inch adjustments.
Built with Wilson’s inline case holder system and stainless construction, it ensures consistent, square cuts for precision reloaders.
Proven Case Trimming Perfection in Production Since 1936.
World Famous Wilson Case Trimmer.
Case Trimmer Only - Accessories Sold Separately.
Coated with black nitride, anodized, or hard anodized for a long lasting durable finish.
Made in the USA!
Precision Micrometer Adjustment System:
This trimmer features a dual-adjustment system that combines coarse and fine control.
The main stop screw is used for major length adjustments, while the micrometer allows precise incremental changes.
- Fine adjustment in .001 inch increments per marking
- Micrometer scale allows repeatable trim settings
- Clockwise adjustment shortens case length
- Counterclockwise adjustment increases case length
According to the instruction design, each micrometer marking represents a controlled change in trim length, making it ideal for load development and precision case preparation.
Inline Case Holder Design for Accuracy:
Like all Wilson case trimmers, this tool uses a case holder that simulates a rifle chamber.
The case is aligned by its body taper, ensuring proper positioning during trimming.
- Case holder system supports consistent alignment
- Stainless rail system guides cutter movement
- Produces square, uniform case mouths
- Reduces variation between cases
This inline design ensures dependable, accurate cuts from case to case, which is critical for consistent reloading performance.
Improved Design and Durability:
This updated model includes several enhancements over previous versions:
- Stainless steel construction for corrosion resistance
- Expanded stop screw diameter for a more secure adjustment
- Wider stop nut for improved stability
- Black anodized crank handle for durability and smoother operation
These improvements provide a more stable trimming platform and longer service life for demanding reloading applications.
Versatile Case Preparation Tool:
In addition to trimming, this tool can be expanded into a complete case prep system with additional accessories.
- Inside neck reaming
- Primer pocket crimp removal
- Case mouth deburring
This makes the trimmer a multi-purpose solution for reloaders looking to improve efficiency and consistency.
Setup and Operation:
The trimmer can be mounted in a soft jaw vise or used with the Wilson Case Trimmer Stand for improved stability.
The cutter is designed to operate in a clockwise direction and should be lubricated periodically for smooth performance.
- Compatible with power adapters (recommended 100–200 RPM)
- Adjust trim length using stop screw and micrometer
- Use case gages or calipers to verify final length
Caliber Compatibility:
Trims cases from .17 to .45 caliber with the appropriate Wilson case holders (sold separately).
Why Choose a Micrometer Case Trimmer?
- Precise, repeatable trim length control
- Eliminates guesswork during adjustments
- Ideal for load development and precision shooting
- Maintains consistent case length across batches
- Built with Wilson’s proven inline trimming system
For reloaders who demand exact measurements and repeatable results, the Stainless Case Trimmer with Micrometer Adjustment provides a high level of control and precision in every trimming operation.
+

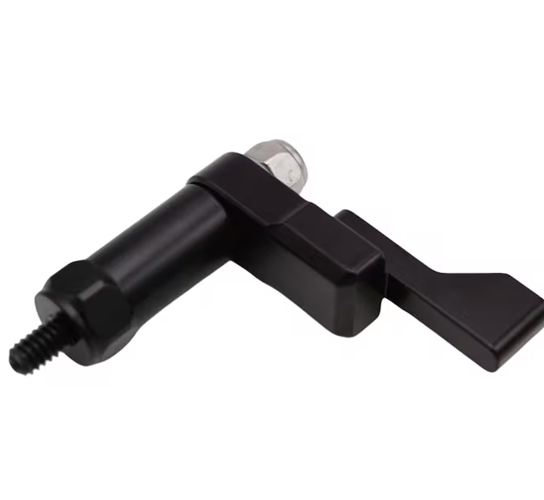

Hard Anodized Case Holder Clamp
CTP-ACLMP
The L.E. Wilson Case Trimmer is one of the best trimmers on the market.
The L.E Wilson Case Holder Clamp makes it even better by eliminating the need to hold the case by hand while trimming.
Features:
- An Alternative to Holding the Case Holder Down with your Hand
- Set the Case Holder on the Rails of the Trimmer then Swing the Clamp Over the Top of the Case Holder
- An Adjustment on Top of the Clamp Allows you to Increase or Decrease Pressure
- Part # CT-SSCLMP is replaced with CTP-ACLMP
- May Not be Compatible with Some Q-Type Case Holders
~~~~~~~~~~~~~~~~
