Product Description
Ultimate Turret Press
91910
NEW!
Press only includes:
5 hole turret
Safety Prime- small and large primer arms and feeds
Bin and bracket- catch completed rounds
Roller handle grip
Caliber change die wrench
Through ram primer disposal tube
The Ultimate Turret press retains the powerful Big Press linkage and circumferential tool head support.
Perimeter support sets all Lee turret press apart from others.
Through ram primer disposal keeps grit and grime away from the massive steel base and ram.
The Ultimate replaces features changeable tool carrier available in three, four, five and six die positions.
The tool carrier is precision machined on all surfaces and closely fitted to the steel support ring that surrounds the indexable tool head, having just enough clearance to allow free indexing and enough radial clearance to allow perfect die alignment.
Perimeter support eliminates any die tipping and provides the best possible accuracy.
Each die position is a quick change, provided by the Lee Breech lock system.
Now you can remove your dies and store them in your fitted die box without disturbing the settings.
Tool carrier can be quickly changed by removing three alloy steel socket head bolts, wrench included.
Every downstroke of the press automatically advances the carrier to the next tool position.
The new index mechanism has only one moving part and is overload protected making it nearly indestructible.
Should it become damaged the drive clutch can be replaced in seconds without tools.
The final and exact positioning of the tool head is provided by a shot pin attached to the ram.
The Ultimate now includes a case ejector to whisk away your finished round to the included bin. No adjustments are required, and the ejector is unbreakable.
The Big Press all-steel compound toggle linkage found on our 50 BMG reloading press sizes the most difficult cases with ease, with sufficient stroke to load the longest magnum cartridges.
Ergonomics are excellent with the formed lever and roller handle.
The balanced lever design is easy to operate and will not drop and pinch a finger.
The finishing touch, a tool rack surrounding the steel tool carrier holds die wrench, ¼ hex wrench, alternate primer arm and Safety Prime.

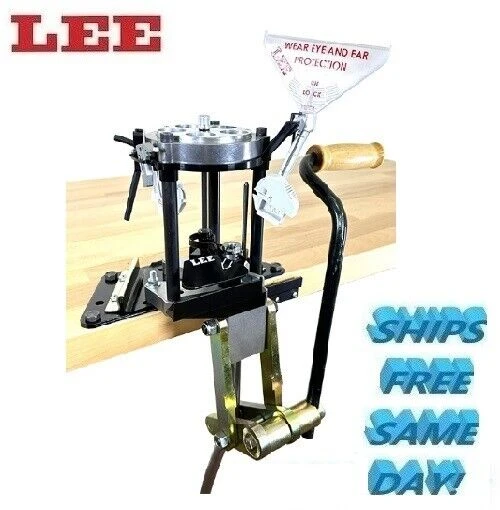

Photo note: press shown mounted to our optional Lee Bench Plate.
Five stations allow any brand of die be used -- inline bullet feed dies, powder check dies and such.
Simple and reliable automatic indexing -- no tools required and never requires adjustment.
Stroke and clearance sufficient for largest magnum rifle cases. Uses the same all steel linkage found on our Classic Cast 50 BMG press.
Spent primer tube collects dirty, gritty spent primers.
All dies securely fastened in the 5 hole turret with Lee Smart Lock bushings.
Safety Prime system - simple, reliable and safe with any brand or size of primer.
Cartridge changeover in seconds, including primer size with no adjustments.
Automatic case ejector reliably whisks away your completed round to the included ammo bin.
Press includes combination tool rack, bin bracket, along with free ammo bin.
Product Information:
Maximum cartridge overall length: 3" automatic index | 4" manual index
Base material: Steel
Columns material: Steel
Ram: Steel
Ram diameter: Over 1"
Linkage: Steel
Tool head material: Steel
Die size accepted: 7/8" x 14
Number of die mounting holes: 5
Breech Lock Quick Change bushings: Yes, 5 included
Priming feature: Yes, no primer brand restriciton
Spent primer collection tube: Yes
Country of origin: Proudly made in USA
5 STAR REVIEWS:
"If the Lee Classic turret press is the only auto-indexing turret press on the market and it works well, the Ultimate Turret Press (UTP) is a step ahead. Tight tolerences with the turret, auto-indexing with up to 6 stations available, the UTP allows you to feed bullets, verify the powder load and enjoy reloading a round one at a time. With 6 stations you'll safely produce 180 rounds per hour from depriming to factory crimp, this machine is lightweight, portable if you wish and does the job. I have the Classic Turret Press and the UTP and I really enjoy producing rounds with the UTP."
"This ships with the 5 station turret, which is great if you have a bullet feeder or powder check. The added station is a welcome addition for easy of reloading at the expense of rounds per hour. The classic I generally did 200-240 rounds per hour or 4 per Minute. This press knock out 3 per Minute when you add the bullet feeder. The press indexes as well as the classic turret. Did Lee solve the occaisional dropper primer? well no but it seems slightly better. Case kicker is perfect and it's great to not fumble for bullets."
~~~~~~~~~~~
